Magnetic Particle Testing (MPT) is a commonly utilized non-destructive testing (NDT) technique. It identifies surface and near-surface flaws in ferromagnetic substances like iron, nickel, cobalt, and their respective alloys. This method is known for its speed, affordability, and relative simplicity, making it a favoured option across multiple industries, such as aerospace, automotive, marine, power generation, and oil and gas sectors.
Magnetic Particle Testing (MPT) functions by magnetizing the item being examined. When flaws exist, they distort the magnetic field, resulting in leakage fields. Upon applying fine ferromagnetic particles to the surface, these particles gather at the leakage areas. This accumulation produces visible signs of flaws. This technique allows for fast and dependable identification of defects that affect the reliability of essential components.
This article looks into the background of Magnetic Particle Testing (MPT), addressing its magnetization approaches, fundamental concepts, and apparatus. It details the process, detectable flaws, benefits, and uses and also outlines safety precautions and emerging innovations.
Magnetic Particle Testing (MPT) has served an important function in non-destructive testing (NDT) for more than a hundred years. Its origins trace back to 1868. Inspectors would magnetize cannon barrels and utilize a magnetic compass. They identified flaws by observing needle movement. With time, MPT methods saw major enhancements.
In the early 1900s, industries began refining the technique. By the 1930s, the railroad sector had widely embraced MPT. It was employed to examine metal parts and improve operational safety. Since then, magnetization methods have continued to evolve. The use of fluorescent magnetic particles and portable tools has improved the method’s precision and usability. Even now, MPT remains a vital practice in numerous sectors, supporting the safety and dependability of essential parts.
.jpg)
Ferromagnetic materials, including iron, nickel, and cobalt, have a strong attraction to magnetic fields. Their distinct atomic arrangement enables clusters of atoms to align uniformly, forming magnetic domains. When unmagnetized, these domains are oriented randomly, producing no overall magnetization. But under an external magnetic field, the domains reorient and align with the applied field. This reorientation produces a powerful cumulative magnetic effect, rendering ferromagnetic materials extremely receptive to magnetization.
Let’s go into the technical depth of why and how ferromagnetic materials interact with magnetic fields.
Ferromagnetism originates from the quantum mechanical properties of electrons — particularly their spin and orbital angular momentum. In atoms like iron (Fe), nickel (Ni), and cobalt (Co), the outermost electrons are in partially filled 3d shells. These unpaired electrons possess intrinsic magnetic moments (due to spin), and the exchange interaction between neighbouring electron spins leads to a parallel alignment — a quantum phenomenon that lowers the system's energy.
Exchange interaction is a quantum mechanical effect that causes electron spins to align in the same direction in ferromagnetic materials, overcoming thermal agitation.
Despite the microscopic tendency for spin alignment, large-scale materials do not exhibit spontaneous magnetization in the absence of an external field. That’s because the material is divided into regions called magnetic domains. Magnetic domains are regions where the magnetic moments of atoms are uniformly aligned.
These domains form to minimize the material’s total magnetic energy, balancing exchange energy, magnetostatic energy, and magnetoelastic energy. In the unmagnetized state, domains are randomly oriented, cancelling each other’s magnetic field, resulting in no net macroscopic magnetization.
When a ferromagnetic material is subjected to an external magnetic field (H), the domain walls (boundaries between domains with different orientations) move. Domains aligned with the field grow at the expense of misaligned domains. Additionally, within domains, individual magnetic moments rotate slightly to better align with the external field (a process known as rotation magnetization).
This results in a macroscopic magnetization (M), creating a strong net magnetic field (B) within the material
As the applied field increases, domains become more aligned until the material reaches magnetic saturation, beyond which no further increase in magnetization occurs. When the external field is removed, the material may retain some magnetization — this is called remanence. The field needed to reduce the magnetization back to zero is the coercivity of the material.
These properties are key in applications like magnetic storage, transformers, and non-destructive testing using Magnetic Particle Testing (MPT). Since ferromagnetic materials have high permeability and retain magnetization, they are ideal for Magnetic Particle Testing. Disruptions in domain structure caused by surface or near-surface discontinuities (like cracks) create leakage magnetic fields, which attract magnetic particles, forming visible indications of flaws.
Magnetic Particle Testing (MPT) identifies surface and near-surface defects in ferromagnetic materials. The procedure begins by magnetizing the component, either in part or as a whole. If defects like cracks exist, they disturb the magnetic field, resulting in flux leakage. Fine ferromagnetic particles are then applied to the surface. These particles accumulate at the leakage sites, forming visible patterns. This accumulation indicates the flaw’s position, dimensions, and contour. MPT is considered a dependable technique for locating defects in vital components.
The success of MPT relies on variables such as the current type used for magnetization. Alternating current (AC) is generally preferred for surface defect detection. Direct current (DC) works better for identifying subsurface flaws.
Magnetic Particle Testing (MPT) utilizes two main magnetization approaches: direct and indirect magnetization.
With direct magnetization, electric current is passed directly through the test piece, producing a magnetic field inside the object. This method is especially effective for detecting surface and near-surface defects. Inspectors commonly use two methods: securing the part between contact heads or introducing current through prods. As current flows, it generates a circular magnetic field around its path. If a flaw is present, it interrupts the magnetic flux, attracting magnetic particles and exposing the defect. Ensuring good contact is crucial for accuracy and to avoid arcing. Also, current intensity must be precisely managed to prevent overheating or component damage. Thanks to its ease of use and consistent results, direct magnetization continues to be widely applied in industry for defect detection.
Indirect magnetization, often referred to as magnetization by induction, induces a magnetic field in the test specimen without applying current directly. This approach involves positioning the part within a current-carrying coil or utilizing a yoke to produce an external magnetic field. Consequently, the object becomes magnetized, enabling flaw detection. This method is advantageous as it eliminates the need for direct electrical contact. It is particularly effective for examining parts where direct methods are unsuitable. Moreover, it provides uniform magnetization for irregular geometries, enhancing the precision and effectiveness of Magnetic Particle Testing (MPT). It suits components with intricate shapes or when assessing localized regions. However, the magnetic field’s intensity and direction must be precisely managed for reliable and sensitive defect identification.
Magnetic Particle Testing (MPT) involves various tools and materials to detect surface and near-surface defects in ferromagnetic objects. The process requires magnetizing devices, magnetic particles, and carrier mediums to ensure precise flaw identification.

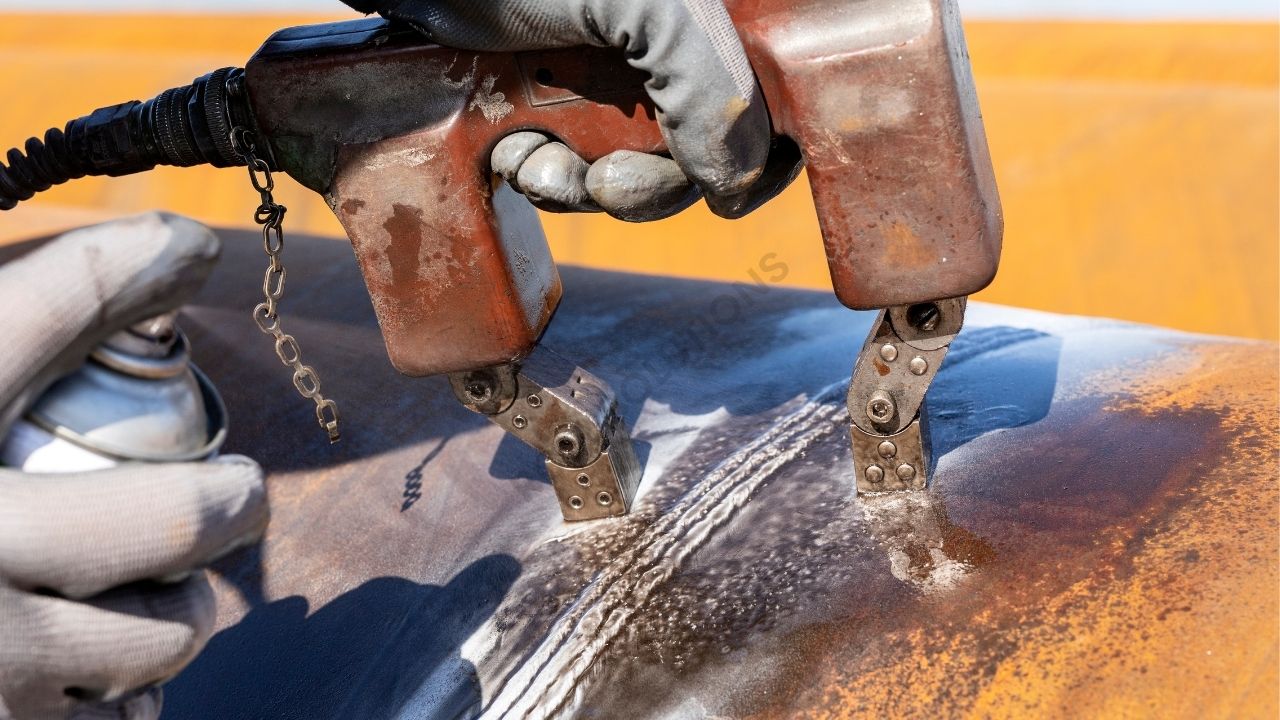

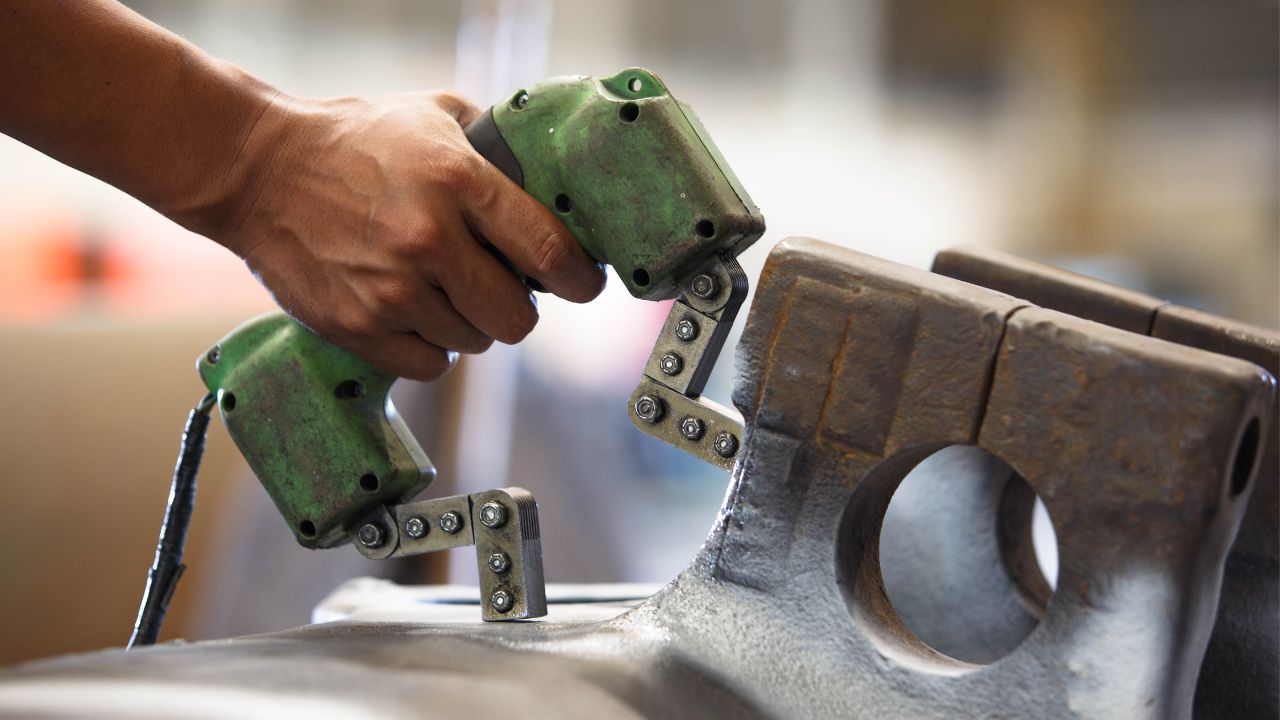

Yokes are portable instruments that produce a magnetic field between two poles. They are useful for examining specific locations and are favored for their versatility and user-friendliness.
Electromagnetic coils create a longitudinal magnetic field when electrical current flows through them. Inserting a test specimen into the coil causes magnetization, making them suitable for components with simple shapes.
Prods are handheld electrodes that pass current directly through the component, creating a focused magnetic field. They are effective for checking welds and selected zones but must be carefully used to avoid damaging the surface.
Magnetic Particle Testing (MPT) is a non-destructive technique used to detect surface and near-surface defects in ferromagnetic materials. The procedure involves essential steps to achieve consistent and precise outcomes.
Clean the inspection surface thoroughly to eliminate substances like oil, grease, dirt, and rust that might hinder the test. A clean surface is vital for proper magnetic particle retention and accurate flaw identification.
Introduce a magnetic field into the part using devices such as yokes, coils, or prods. The choice depends on geometry and test objectives. Yokes apply a field between two poles, ideal for localized checks. Coils produce a longitudinal field, best suited for cylindrical or basic-shaped parts. Prods send current directly into the material, creating a concentrated magnetic field. When magnetized, any defect disturbs the field, leading to flux leakage. This attracts magnetic particles, revealing flaws. Accurate magnetization is key for effective testing. Inspectors must select the appropriate method to achieve full coverage and dependable detection of surface or near-surface defects.
Distribute magnetic particles over the magnetized surface using either dry powder or a liquid medium. These particles spread out and concentrate at points where magnetic flux escapes due to defects like cracks. Dry methods are effective in field environments, while liquid suspensions provide greater sensitivity to minor flaws. The inspector ensures uniform distribution to reveal any present discontinuities. Under suitable lighting or UV light for fluorescent particles, indications of defects become noticeable. This phase is vital for pinpointing the location and dimensions of imperfections. Proper application enhances flaw detection and guarantees consistent results in Magnetic Particle Testing (MPT).
Thoroughly examine the surface for accumulations of magnetic particles, which commonly signal defects. To improve detection, employ correct lighting setups. Use bright white light for visible particles, ensuring even surface illumination. For fluorescent particles, apply ultraviolet (UV-A) light within a dark setting to better highlight defects. Move or adjust the light as necessary to cover all areas and avoid shadows. Adequate lighting is essential for accurate flaw identification. Adhering to these procedures ensures dependable Magnetic Particle Testing (MPT) outcomes. This directly supports enhanced inspection quality and overall safety assurance.
Once testing is complete, remove residual magnetism from the part by demagnetizing it, as leftover magnetism may impact functionality or hinder future evaluations. This step is essential for preserving the material’s properties.
Wipe the part clean to eliminate any leftover magnetic particles and testing materials. This ensures the component remains uncontaminated and is ready for use or additional processing.
Following these procedures in the MPT workflow guarantees precise flaw detection. This helps maintain the dependability and safety of essential components.
Magnetic Particle Testing (MPT) is a non-destructive evaluation technique used to detect surface and near-surface flaws in ferromagnetic materials. It is highly effective in locating different discontinuities that may threaten component performance.
Surface cracks found on a material’s exterior result from fatigue, mechanical stress, or impact damage. In Magnetic Particle Testing (MPT), such cracks disturb the magnetic field, leading to flux leakage. Magnetic particles accumulate at these leakage zones, making the cracks easily noticeable. This approach efficiently identifies cracks at an early stage, helping to avoid failures. Additionally, routine testing improves safety and prolongs the service life of vital parts across many sectors. This enables industries to lower risk, reduce repair costs, and maintain dependable performance.
Subsurface flaws, such as voids or inclusions, exist just below the surface and cannot be seen visually. In Magnetic Particle Testing (MPT), these flaws interfere with the magnetic field when located near the surface. This interference results in flux leakage, which causes magnetic particles to collect at the defect site. Consequently, the accumulated particles create visible patterns, helping inspectors identify hidden issues. Detecting these flaws early helps prevent expensive failures and boosts material performance. In addition, frequent testing enhances overall safety and prolongs the service life of essential components, ensuring efficient and uninterrupted operations.
Inclusions are foreign, non-metallic substances embedded in metal during production. Seams are elongated, narrow imperfections resulting from faulty processing. Both interrupt the magnetic field during MPT, causing flux leakage. Magnetic particles cluster in these regions, making the defects apparent.
Identifying these flaws helps avoid potential failures and supports the dependable performance of ferromagnetic components. Magnetic Particle Testing (MPT) plays a vital role in upholding safety and quality standards across industries such as aerospace, automotive, and construction.
Magnetic Particle Testing (MPT) is an essential non-destructive examination technique widely applied in quality assurance and inspection tasks. It not only reveals surface and near-surface flaws in ferromagnetic materials but also promotes safety, dependability, and industry compliance. Additionally, early flaw detection through MPT helps avoid breakdowns, lowers repair expenses, and improves overall process efficiency. As a result, industries depend on this method to maintain strict standards and boost equipment reliability.
Magnetic Particle Testing (MPT) is effective in locating surface and near-surface issues such as cracks, seams, and inclusions in ferromagnetic substances. These flaws are often invisible to the eye yet can weaken structural soundness. The magnetic field reveals defect zones, drawing particles to cluster and expose them. This method guarantees that significant flaws are found early, helping avoid sudden failures in industrial machinery.
In industries like aerospace, automotive, and construction, safety remains a top priority. MPT is used to examine essential components such as welds, castings, and machined items to confirm adherence to standards. Defective parts may lead to serious incidents, but routine MPT evaluations help secure operational safety. Detecting faults in advance prevents breakdowns, reducing hazards to personnel and environmental damage.
A major benefit of MPT is its rapid and effective performance. Compared to other non-destructive testing (NDT) methods, MPT offers instant feedback. Inspectors can evaluate flaws on the spot without the need for lengthy post-analysis. This makes it suitable for large-scale testing, including routine maintenance and production line evaluations. Its speed in delivering results helps industries reduce downtime and sustain operational flow.
Numerous industries adhere to strict safety and quality guidelines. MPT helps ensure that parts meet these established standards prior to use. Groups such as ASME and ASTM provide protocols for correct inspection procedures. Ongoing MPT evaluations assist businesses in meeting these standards, avoiding compliance or legal problems. Following quality practices also strengthens a company’s credibility and dependability.
Overlooked defects may lead to expensive fixes, downtime, or severe accidents. MPT, however, enables early detection, lowering upkeep costs and increasing the durability of key assets. Through regular inspections, companies can avoid high replacement expenses and enhance equipment efficiency. In the end, preventive testing via MPT ensures safer, more dependable, and economical processes, helping industries stay productive while managing risk.
Magnetic Particle Testing serves as a vital tool in inspection routines. It promotes safety, consistency, and compliance while delivering fast and precise flaw detection. Frequent checks allow industries to avoid defects, cut expenses, and uphold superior quality standards.
Magnetic Particle Testing (MPT) has undergone notable progress, improving its performance and precision.
Modern upgrades in MPT feature the use of robotic systems and automation, reducing human involvement and ensuring repeatable results. Enhanced sensors and low-power electromagnets have boosted detection sensitivity, making it possible to identify finer flaws even in difficult conditions. Furthermore, advancements in fluorescent magnetic particles have improved defect visibility, allowing for more accurate examinations.
Digital integration has transformed how MPT data is handled and stored. Sophisticated automation tools and augmented reality (AR) systems improve flaw interpretation, helping inspectors examine defects with greater accuracy. Systems for real-time analysis offer instant insights, making inspections faster and aiding better decisions. These digital tools lead to more dependable and streamlined testing methods.
Looking ahead, MPT is expected to benefit from innovations in AI and machine learning to anticipate defects and fine-tune testing parameters. Researchers are also exploring environmentally friendly materials to lower ecological impact. With safety and quality remaining priorities, MPT will continue advancing with smarter tools. It will incorporate greener practices. These changes will ensure more dependable and effective inspections.
Magnetic Particle Testing (MPT) is a non-destructive technique designed to locate surface and near-surface imperfections in ferromagnetic materials. Its reliability and speed make it popular in many industries.
Magnetic Particle Testing (MPT) remains a trusted non-destructive technique, yet it comes with certain drawbacks:
NDT Magnetic Particle Testing (MPT) is an essential non-destructive evaluation technique for detecting surface and near-surface flaws in ferromagnetic materials. Its affordability and effectiveness make it a key tool in sectors like aerospace, automotive, and construction, supporting the safety and dependability of essential components. Modern advancements, such as automation and digital technologies, have improved MPT’s precision and scope. Following correct procedures, safety guidelines, and industry regulations is vital for conducting MPT safely and efficiently. As industries emphasize quality assurance, MPT remains a cornerstone for ensuring structural soundness and avoiding defects. Continued innovation and research will expand MPT’s potential, reinforcing its value in today’s industrial landscape.
